meshed smt stencils

  • Easiest frames for handling
  • Lightweight but robust
  • High-grade mesh for optimum tensioning

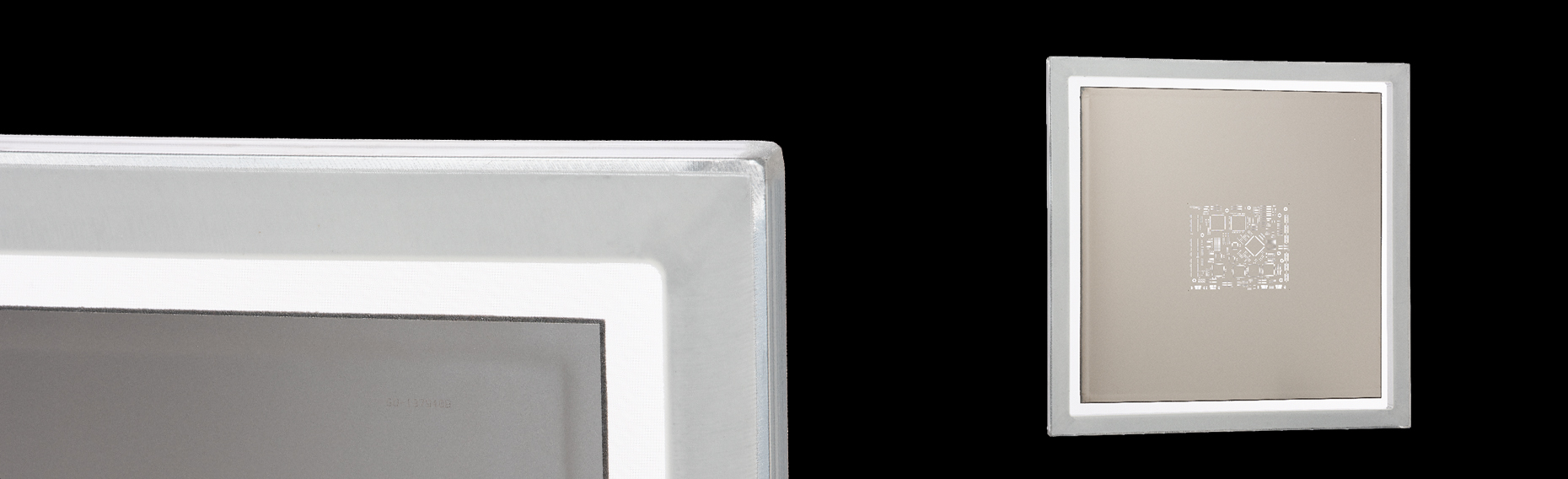

Tecan’s aluminium frame profile is a proven standard for electronics production. Robust and with high tensile strength, the frames and high-grade polyester mesh enable the stencil to be bonded under high tension.

Most standard frame sizes are available next day from stock, with custom sizes also available.

Formats

Single level laser-cut or multi-level etched/laser-cut options

Typical frame sizes (mm):

  • 434x434x25.4
  • 508x508x38.1
  • 503x404x25.4
  • 584.2×584.2×38.1
  • 622.3x392x19.05
  • 650x550x30
  • 798x578x28/35
  • 736.6×736.6×38.1
  • Other sizes available on request

Materials: Stainless steel, fine grain steel, nickel
